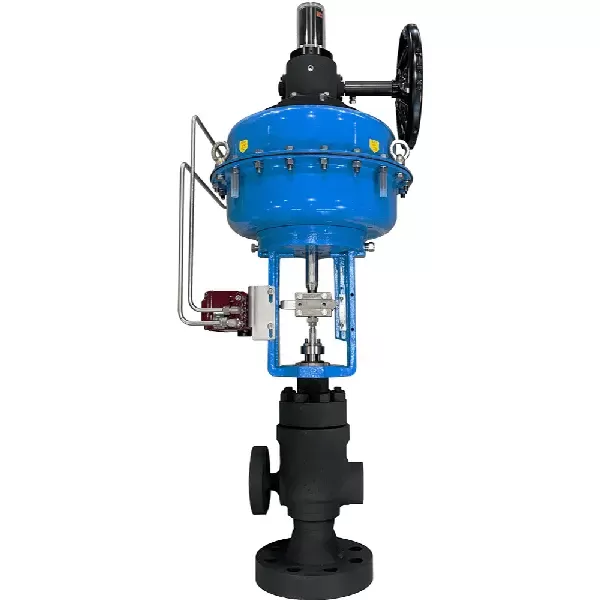

In the ever-evolving field of industrial process control, selecting the right valve for high-pressure, high-temperature, and high-differential pressure applications is critical. The Angle Type Cage-Guided Control Valve stands out as one of the most advanced solutions designed to meet these demanding conditions. Engineered to handle a variety of clean liquids and gases, this China Control Valve excels in severe service environments where precision, durability, and noise reduction are paramount.
Featuring a unique cage-guided structure, this valve delivers superior stability and performance even under extreme conditions. It effectively addresses common process challenges such as cavitation, erosion, noise, and vibration, ensuring smooth and reliable operation in industries including power generation, petrochemical, oil & gas, and chemical processing.
The valve’s versatility is further enhanced by its capability to operate in both flow-to-open (FTO) and flow-to-close (FTC) configurations. Typically, flow-to-close trims are preferred for liquid applications, while flow-to-open trims are suited for steam and gas services. Coupled with a drilled-hole cage designed for anti-cavitation and low-noise performance, the Angle Type Cage-Guided Control Valve has become an indispensable asset for industries requiring precise flow control under harsh operating conditions.
At the heart of this valve lies the cage-guided design, which markedly improves valve stability and performance. Unlike stem-guided valves, which are prone to vibration and misalignment, cage-guided valves keep the plug centered throughout operation, reducing wear and extending service life.
The design also delivers superior flow characteristics, enabling efficient and predictable flow modulation across a wide range of operating conditions. The cage’s drilled-hole pattern minimizes noise and vibration—common challenges in high-pressure, high-velocity applications.
This valve’s flexibility is highlighted by its range of trim options tailored to various process needs:
Single P-Port Trim: General-purpose, balanced flow control.
Multi-Step Trim: For severe service applications, reducing pressure drop stepwise to prevent cavitation and flashing.
V-Notch Cage Trim: Offers fine modulation for precise flow control.
Flashing Service Trim: Optimized for handling flashing liquids, minimizing internal damage.
These trims make the valve adaptable to applications like boiler blowdown, steam conditioning, and heater drains.
Flashing and cavitation can cause significant valve damage, noise, and vibration. This valve combats these issues by:
Using multi-stage pressure reduction trims to prevent vapor bubble formation.
Incorporating hardened materials resistant to erosion.
Employing noise and vibration control techniques to ensure long-term reliability.
Multi-Spring Actuation for Precision Control
Ensures minimal hysteresis and dead band for accurate valve positioning.
Versatile Actuation Options
Compatible with diaphragm, piston, hydraulic, and electric actuators.
Fail-Safe Configurations
Configurable as Fail-Closed (FC), Fail-Open (FO), or Fail-in-Place (FIP) based on safety requirements.
Quick Change Trim Design
Top-entry bonnet enables fast inspection and replacement of internal components.
Wide Range of Shutoff Classes
Available from ANSI Class IV to Class VI, suitable for varying leakage tolerance.
Modular Noise Reduction
Drilled-hole cage reduces noise and vibration, especially in steam and gas applications.
Superior Erosion and Cavitation Resistance: Hardened trims and staged pressure reduction extend service life.
Easy Maintenance: Top-entry design reduces downtime through fast trim changes.
Energy Efficiency: Minimizes cavitation and noise, reducing energy loss and operating costs.
Noise Control: Integrated low-noise trims eliminate the need for extra silencers.
Industry Versatility: Suited for power plants, petrochemical refineries, chemical processing, and oil & gas.
Boiler Blowdown Systems: Mitigates flashing and erosion, prolonging equipment life.
Heater Drain Valves: Manages high-temperature condensate with minimal wear.
Steam and Gas Control: Provides precise modulation, reducing noise and vibration.
Chemical Injection & Severe Services: Controls high-differential pressures, preventing cavitation damage.
Top-Entry Access: Allows rapid inspection and component replacement without full disassembly.
Quick Trim Changes: Facilitates switching flow characteristics without replacing the entire valve.
Reduced Downtime: Modular design supports easy stocking of spare parts and swift maintenance.
Specialized Actuators: Pneumatic, electric, and hydraulic options for diverse automation needs.
Positioners and Controllers: Digital positioners and smart controllers provide real-time control feedback.
Noise Reduction Accessories: Additional silencers and diffusers are available.
Special Coatings & Materials: Corrosion-resistant alloys and custom seating materials for harsh environments.
The Angle Type Cage-Guided Control Valve represents a breakthrough in process control technology, delivering unmatched stability, precision, and durability for severe service applications. Its robust construction, advanced anti-cavitation design, and noise reduction capabilities make it a preferred choice for industries managing high-pressure differentials, flashing liquids, and erosive fluids.
With easy maintenance, fast trim change capability, and extensive customization options, this valve offers a cost-effective and long-term solution for optimizing process control and operational efficiency. As industrial demands grow for reliability, reduced downtime, and energy efficiency, the Angle Type Cage-Guided Control Valve stands out as a vital component for future-ready, high-performance process systems.Know more about Google SEO Directory
